Backpack: A Backpropagable Adversarial Embedding Scheme

Download

• Paper

• Code and data

Abstract

A minmax protocol offers a general method to automatically optimize steganographic algorithm against a wide class of steganalytic detectors. The quality of the resulting steganograhic algorithm depends on the ability to find an “adversarial” stego image undetectable by a set of detectors while communicating a given message. Despite minmax protocol instantiated with ADV-EMB scheme leading to unexpectedly good results, we show it suffers a significant flaw and we present a theoretically sound solution called Backpack. Extensive experimental verification of minmax protocol with Backpack shows superior performance to ADV-EMB, the generality of the tool by targeting a new JPEG QF100 compatibility attack and further improves the security of steganographic algorithms.

Context

In a scheme of steganography research, a common usage is to simulate the pertubation applied to a natural cover image $\mathbf{x}$ if we embed a message of size $|m|$ while minimizing the cost map $\mathbf{\rho}$ (via the STC algorithm). Indeed, the perfect embedding of the message is simulated by sampling $\mathbf{b}$ according to a probability law $\boldsymbol{\pi}$ depending on $\boldsymbol{\rho}$. The common pipeline in the following:

Differentiable steganography

The idea we propose is to optimize the cost $\rho$ w.r.t. the detectability of a detector $f$ by a standard optimization. We will use gradient descent on the costs in order to decrease $f(y)$. In the usual gradient descent setting, we need to compute the gradient $\nabla_{\boldsymbol{\rho}} \mathbb{E}[f(\mathbf{y})]$, and for a given $\boldsymbol{\rho}$, we would update it by the following formula

$$\boldsymbol{\rho} \leftarrow \boldsymbol{\rho} - \alpha \nabla_\rho \mathbb{E}_{\mathbf{b}}[f(\mathbf{x}+\mathbf{b})]$$

Softmax Gumbel

Calculating the gradient of the expectation of a discrete probability distribution with respect to its parameters is a very well-studied problem. From the vast prior art, we have chosen the method relying on the Gumbel distribution. This technique has the advantage of giving a general formula to draw samples according to any discrete distribution so that it can be used without a modification for n-ary coding, and its theoretical properties are well analyzed. It can be shown that discrete modifications can be drawn by sampling $g = (g^j)_{j\in B}$, which is a vector of independent entries sampled from the standard Gumbel distribution G(0, 1), and applying the following deterministic function:

$$b=HG(\boldsymbol{\pi}, \mathbf{g})=\underset{i \in \mathcal{R}}{\arg \max }\left(g^j+\log \pi^j\right)$$

In the above function $HG$ (called Hardmax Gumbel), the $\arg \max$ can be conveniently replaced by the softmax function:

$$\operatorname{softmax}\left(v^1, \ldots, v^n\right)=\frac{1}{\sum_{k=1}^n e^{v^k}}\left(e^{v^1}, \ldots, e^{v^n}\right)$$

which is a well-known approximation of arg max, as can be seen from

$$\lim _{\tau \rightarrow 0} \operatorname{softmax}\left(\frac{v^1}{\tau}, \ldots, \frac{v^n}{\tau}\right)=(0,0 \ldots, 0,1,0, \ldots, 0)$$

where the $1$ is on $\arg\max_i v^i$ position and $\tau$ is a temperature parameter controlling the smoothness of the approximation.

Replacing arg max in Equation by a softmax approximation with temperature leads to

$$b_\tau = SG_\tau(\boldsymbol{\pi}, \mathbf{g})=\sum_{j \in \mathcal{B}} j \nu^j$$

with

$$\boldsymbol{\nu}=\operatorname{softmax}\left(\frac{\mathbf{g}+\log \boldsymbol{\pi}}{\tau}\right)$$

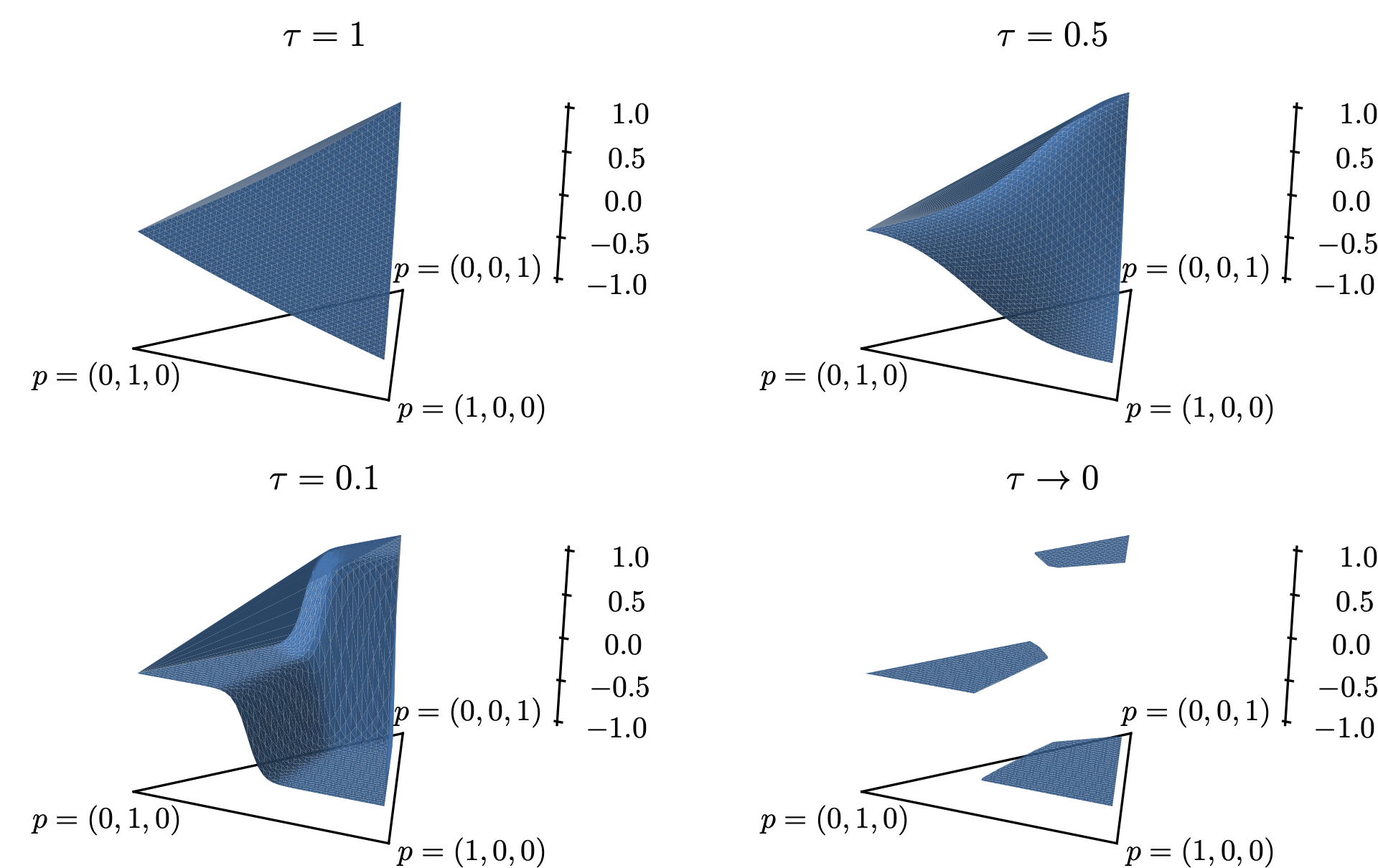

The gradient of the continuous modification $\tilde{b}_\tau$ w.r.t. $\pi$ are easy to compute and have non-zero values. It can be conveniently plugged in the chain rule although the resulting gradient is biased when $\tau > 0$. Figure below offers a visualization of the influence of $tau$ on the output of the Softmax-Gumbel (SG) function, for a fixed realization of a random vector g and fixed probability vector $\pi$.

See on the Figure below the different function $b_{\tau}$ for different $\tau$. For a given value of triplet $g = (g^{−1}, g^{0}, g^{+1})$ (where $g^j ∼ G(0, 1)$ are independently drawn from Gumbel standard distribution), the value of the modification $\tilde{b}_{\tau} = SG(p, g)$ is plotted the z-axis for all possible triplets of probabilities $p = (p^{−1}, p^{0}, g^{+1})$, and for 4 values of $\tau$ . The triplets are plotted in the trilinear coordinate system.

Softmax Gumbel function

Backpropagation

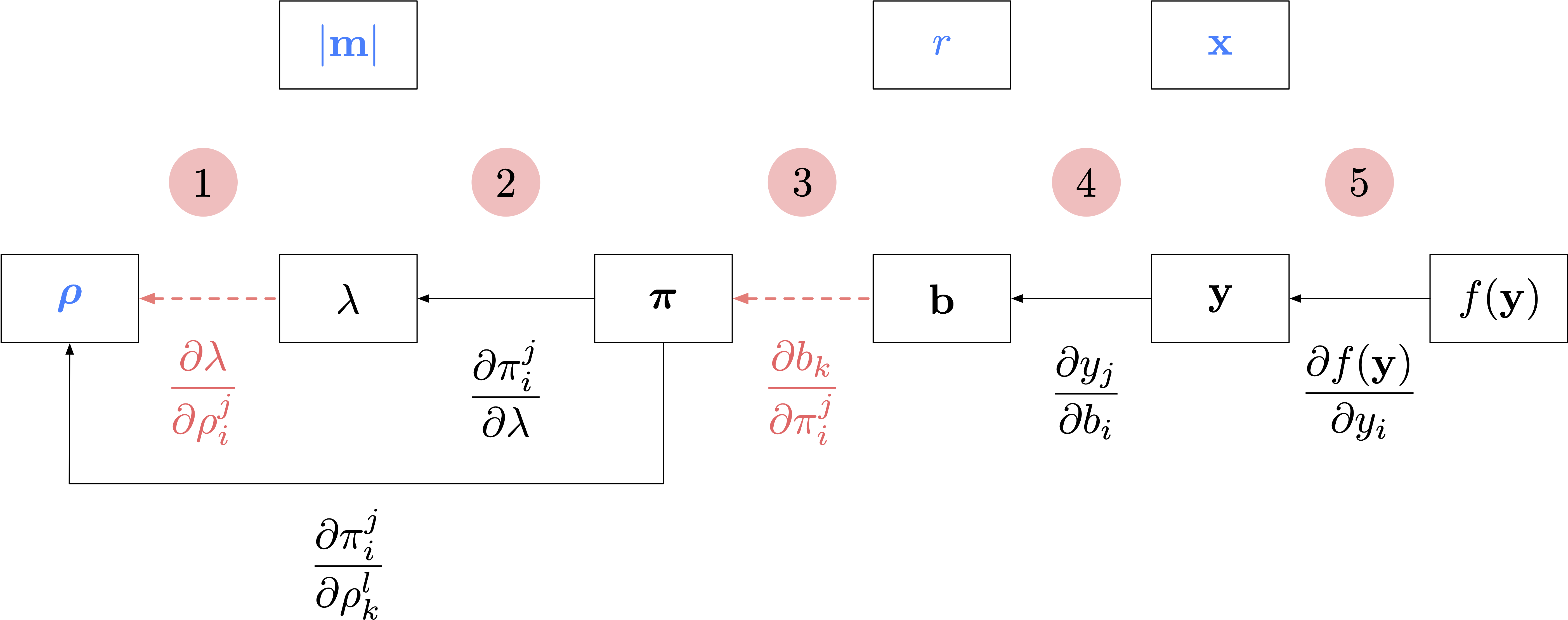

Now it’s possible to backpropagate, with $\tau>0$ through the pipeline introduced in the beggining:

Results

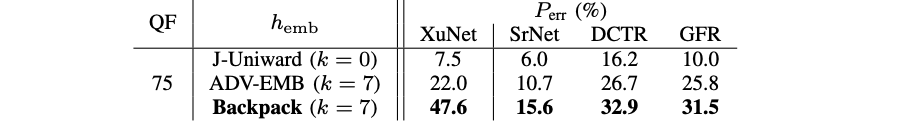

For each attack (ADV-EMB and Backpack), we ran the protocol for 7 iterations with $F = {XuNet}$ with images at QF 75 and payload 0.4 bpnzAC. At each iteration, the $P_{err}$ of three other blind steganalysts (SrNet, classifiers based on DCTR and GFR features) are reported in the Figure below, and the final values are in the table below.

We observe that the proposed Backpack method outperforms ADV-EMB. Starting from a $P_{err}$ of $7.5%$ on costs obtained from J-Uniward, a XuNet steganalyzer trained after seven iterations with Backpack achieves a $P_{err}$ of $47.6%$ while it achieves $22%$ using ADV-EMB.

Citation

Solène Bernard, Patrick Bas, John Klein, Tomas Pevny. 2022. “Backpack: A Backpropagable Adversarial Embedding Scheme.” IEEE Transactions on Information Forensics and Security Volume (17): 3539 - 3554. https://doi.org/10.1109/TIFS.2022.3204218

@ARTICLE{9891839,
  author={Bernard, Solène and Bas, Patrick and Klein, John and Pevný, Tomáš},
  journal={IEEE Transactions on Information Forensics and Security},
  title={Backpack: A Backpropagable Adversarial Embedding Scheme},
  year={2022},
  volume={17},
  number={},
  pages={3539-3554},
  keywords={Protocols;Detectors;Games;Costs;Steganography;Security;Distortion;Steganography;steganalysis;distortion function;adversarial attacks},
  doi={10.1109/TIFS.2022.3204218}}
